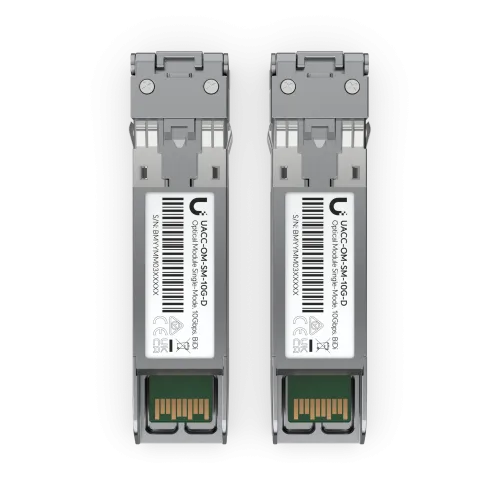

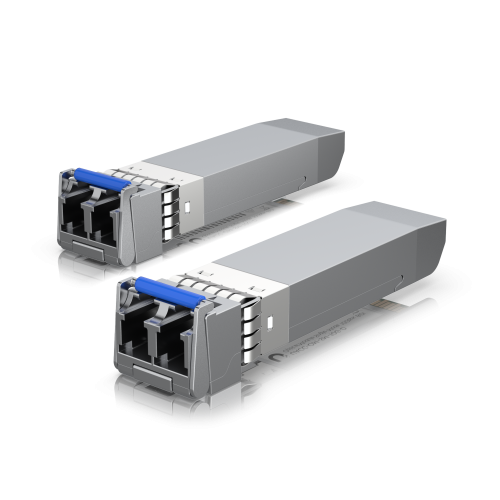

Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Overview
The Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) is a high-performance optical transceiver solution designed for long-distance 10 Gigabit Ethernet connectivity. The matched pair uses single-mode fiber and supports connections of up to 10km, making it suitable for enterprise networks, campus backbones, data centers and building-to-building links.
Each module features an SFP+ form factor and a duplex LC UPC interface. The modules operate at 1310nm and support both 1Gbps and 10Gbps data rates, providing flexibility when connecting compatible networking equipment.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Price in Kenya
| Product |
Price in Kenya |
| Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) |
KSh 14,000 – 20,000 |
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Key Specs
| Specification |
Details |
| Model |
UACC-OM-SM-10G-D-2 |
| Product Type |
10G Single-Mode Optical Module |
| Form Factor |
SFP+ |
| Fiber Type |
Single-Mode Fiber |
| Data Rate |
1Gbps / 10Gbps |
| Maximum Distance |
10km |
| Connector |
Duplex LC UPC |
| TX Wavelength |
1310nm |
| RX Wavelength |
1310nm |
| Maximum Power Consumption |
1W per module |
| Pack Size |
2 modules |
| Operating Temperature |
0–70°C |
| BiDi |
No |
The manufacturer's specifications confirm the 10km range, duplex LC UPC connector, 1310nm wavelength and 1W maximum power consumption.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Performance
- 10Gbps bandwidth: Supports high-speed data transmission for demanding network applications.
- 10km reach: Provides long-distance connectivity using compatible single-mode fiber.
- Low power consumption: Each module consumes a maximum of approximately 1W.
- Dual-speed support: Supports both 1Gbps and 10Gbps connectivity.
- 1310nm optics: Designed for long-distance single-mode fiber transmission.
- Full-duplex operation: Uses separate transmit and receive fiber strands for simultaneous communication.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Smart Features
- SFP+ plug-and-play installation simplifies deployment in compatible equipment.
- Hot-swappable design allows modules to be installed or replaced without shutting down compatible networking hardware.
- Matched 2-pack makes it convenient to create a fiber connection between two devices.
- Broad interface compatibility supports compatible SFP+ and SFP ports.
- Low-power operation helps reduce energy consumption.
- Optical diagnostics support can provide useful information on compatible networking platforms.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Design & Build
- Compact SFP+ form factor fits compatible SFP/SFP+ slots.
- Duplex LC UPC interface provides a secure fiber connection.
- Two-module package is designed for paired fiber-link deployment.
- Commercial temperature range supports operation from 0°C to 70°C.
- Fiber cable sold separately, allowing users to select the required cable length and fiber specification.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Connectivity
- 10Gbps SFP+ interface for high-speed network uplinks.
- Duplex LC UPC connectors require two fiber strands.
- 1310nm optical wavelength for both transmission and reception.
- Single-mode fiber support for extended-distance connections.
- Up to 10km link distance for suitable fiber infrastructure.
- 1Gbps backward compatibility provides additional flexibility with compatible equipment.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Use Cases
- Enterprise network backbones requiring high-speed fiber connectivity.
- Building-to-building connections across campuses and business premises.
- Data center interconnects requiring reliable 10Gbps links.
- Switch-to-switch uplinks using compatible SFP+ ports.
- Server and storage networks requiring high-speed fiber connections.
- ISP and WISP infrastructure using compatible optical networking equipment.
- Campus networks requiring long-distance fiber connectivity.
- Network upgrades from Gigabit to 10 Gigabit Ethernet.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Pros & Cons
| Pros |
Cons |
| Up to 10Gbps connectivity |
Fiber cable sold separately |
| Supports up to 10km |
Requires compatible SFP/SFP+ ports |
| Duplex LC UPC connector |
Uses two fiber strands |
| Supports 1Gbps and 10Gbps |
Not a BiDi module |
| Low 1W maximum power consumption |
Limited to 10km |
| Supplied as a 2-pack |
Higher cost than shorter-range modules |
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) FAQs
What is the UACC-OM-SM-10G-D-2?
It is a 2-pack of 10G single-mode SFP+ optical modules designed for fiber connections up to 10km.
What speed does the module support?
It supports 1Gbps and 10Gbps data rates.
What is the maximum transmission distance?
The maximum supported cable distance is 10km over single-mode fiber.
What connector does it use?
It uses a duplex LC UPC connector.
Is this a BiDi module?
No. The UACC-OM-SM-10G-D-2 is a duplex optical module, meaning it uses separate strands for transmitting and receiving data.
Does the package include fiber cables?
No. Compatible single-mode fiber cables must be purchased separately.
How much power does each module consume?
Each module has a maximum power consumption of 1W.
Can it be used with SFP ports?
Ubiquiti lists compatibility with both SFP+ and SFP interfaces, subject to the capabilities and compatibility of the host equipment.
Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) Conclusion
The Ubiquiti UFiber SFP+ Single-Mode Module 10Gbps 10km 2-Pack (UACC-OM-SM-10G-D-2) provides a reliable solution for extending high-speed network connections over single-mode fiber. With 10Gbps performance, a 10km transmission range, duplex LC UPC connectivity and low 1W power consumption, it is well suited to enterprise, campus, data center and building-to-building network deployments.
