Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Price in Kenya

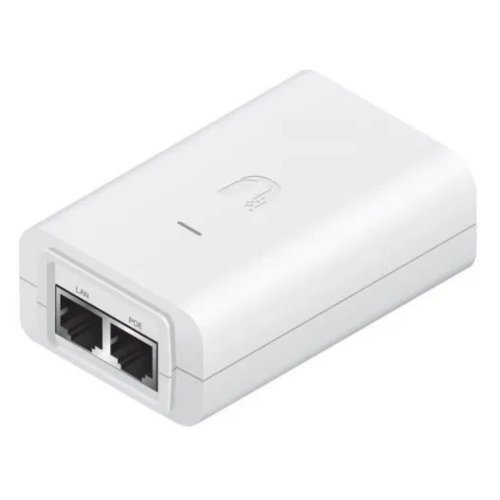

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH)

KSh 2,500

Stock Status:

Condition: New

SKU : 7199M58

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Key Features

24V DC output at 1A
24W maximum power output
Gigabit Ethernet connectivity
24V passive PoE
Supports compatible Ubiquiti PoE devices
Remote reset capability
Dedicated reset button
Surge and clamping protection
Maximum surge discharge protection
Peak pulse current protection
Shielded RJ45 connection
100–240V AC input
Compact white design
AC power cable with earth ground included

Warranty: The warranty tendered hereunder, on the electronic product(s) sold under this invoice will be provided exclusively by their respective Authorized Agents/Distributors and are limited to the period indicated from the date ofyour invoice, except otherwise mentioned as per the warranty conditions as carried along with the products(s)

Warranty Guide

Description

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Overview

The Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) is a compact power solution designed to deliver both network connectivity and 24V passive PoE power to compatible Ubiquiti devices. It provides up to 24W of power at 1A, making it suitable for a wide range of compatible access points, wireless radios, and other network equipment.

The injector features a Gigabit Ethernet port, allowing data transmission at up to 1Gbps while simultaneously supplying power through the Ethernet cable. This makes it useful when a PoE switch is unavailable or when a dedicated PoE connection is required for an individual device.

Built-in surge, clamping, and pulse-current protection helps protect connected equipment from certain electrical disturbances. The remote reset function also allows compatible devices to be power-cycled conveniently.

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Price in Kenya

Product	Price in Kenya
Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH)	KSh 2,200 – KSh 3,500

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Key Specs

Specification	Details
Model	POE-24-24W-G-WH
Product Type	Passive PoE Injector
Output Voltage	24V DC
Output Current	1.0A
Maximum Output Power	24W
Ethernet	Gigabit
Powering Method	2-Pair Passive PoE
Input Voltage	100–240V AC
Input Frequency	50/60Hz
Remote Reset	Yes
Reset Button	Yes
Surge Protection	Difference and common mode
Clamping Protection	11V data, 60V power
Maximum Surge Discharge	1500A
Peak Pulse Current	36A data
Dimensions	88 × 57 × 33 mm
Weight	Approximately 159g
Operating Temperature	0°C to 40°C
Operating Humidity	35–95% noncondensing
Color	White

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Performance

24W Power Delivery: Provides 24V DC at 1A for compatible PoE equipment.
Gigabit Data: Supports Gigabit Ethernet for fast network data transmission.
Stable Power: Designed to provide consistent power to compatible Ubiquiti devices.
Low Power Consumption: Uses an efficient power supply design with 80%+ efficiency.
Fast Response: Protection circuitry has a response time of less than 1 nanosecond.
Reliable Operation: Suitable for continuous powering of compatible network equipment.

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Smart Features

Remote Reset: Allows compatible connected equipment to be remotely power-cycled.
Reset Button: Provides a convenient physical reset function.
Surge Protection: Helps protect connected equipment from electrical surges.
Clamping Protection: Provides protection for both data and power circuits.
Shielded Ethernet: Uses a shielded RJ45 connection for improved protection and network integrity.
Plug-and-Play: No software configuration is required for basic operation.

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Design & Build

Compact 88 × 57 × 33mm form factor.
Lightweight construction of approximately 159g.
White enclosure suitable for discreet indoor installations.
Shielded RJ45 connector.
Designed for convenient desktop or wall-mounted placement.
AC power cable with earth ground provides an appropriate grounding connection.
Compact construction helps reduce installation clutter.

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Connectivity

Gigabit Ethernet: Provides data transmission up to 1000Mbps.
RJ45 PoE Connection: Sends power and data to the connected compatible device.
AC Input: Accepts 100–240V AC at 50/60Hz.
2-Pair PoE: Delivers 24V passive power using the designated Ethernet pairs.
Shielded Connection: Helps improve electrical protection and connection reliability.

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Use Cases

Wireless Access Points: Power compatible Ubiquiti access points without a PoE switch.
Outdoor Radios: Provide power to compatible Ubiquiti wireless networking equipment.
CPE Equipment: Supply 24V passive PoE to compatible customer-premises equipment.
Small Networks: Add PoE capability to a network using a standard Ethernet connection.
Network Upgrades: Convert a suitable non-PoE Ethernet connection into a passive PoE connection.
Individual Devices: Useful when only one compatible PoE device needs to be powered.

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Pros & Cons

Pros	Cons
24W power output	Passive PoE requires compatible equipment
24V DC at 1A	Not suitable for 48V 802.3af/at devices
Gigabit Ethernet support	Powers one device at a time
Remote reset capability	Indoor operating temperature range
Surge and clamping protection	No built-in network switching
Compact and lightweight	Requires a separate Ethernet cable
100–240V AC input	24W maximum output

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) FAQs

What is the output of the POE-24-24W-G-WH?

It provides 24V DC at 1A, with a maximum output power of 24W.

Is the POE-24-24W-G-WH Gigabit?

Yes. It has a Gigabit Ethernet port and supports data speeds up to 1000Mbps.

Is this a passive PoE injector?

Yes. The POE-24-24W-G-WH uses 24V passive PoE rather than standard 48V 802.3af/at PoE.

Does it support remote reset?

Yes. The injector includes remote reset capability and a reset button for compatible connected devices.

What devices can use the Ubiquiti POE-24-24W-G-WH?

It can power compatible Ubiquiti devices that specifically support 24V passive PoE, including certain access points, wireless radios, and CPE equipment.

Does the injector provide surge protection?

Yes. It includes difference/common-mode surge protection, clamping protection, maximum surge discharge protection, and peak pulse current protection.

Can I use it with any PoE device?

No. The connected equipment must support 24V passive PoE. It should not be used with equipment that requires a different PoE voltage or standard unless compatibility is explicitly confirmed.

Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) Conclusion

The Ubiquiti PoE Injector 24VDC 24W 1A (POE-24-24W-G-WH) is a practical solution for powering compatible 24V passive PoE equipment while maintaining Gigabit Ethernet connectivity. Its 24W output, remote reset capability, surge protection, compact construction, and wide AC input range make it suitable for individual network-device installations.
