Description

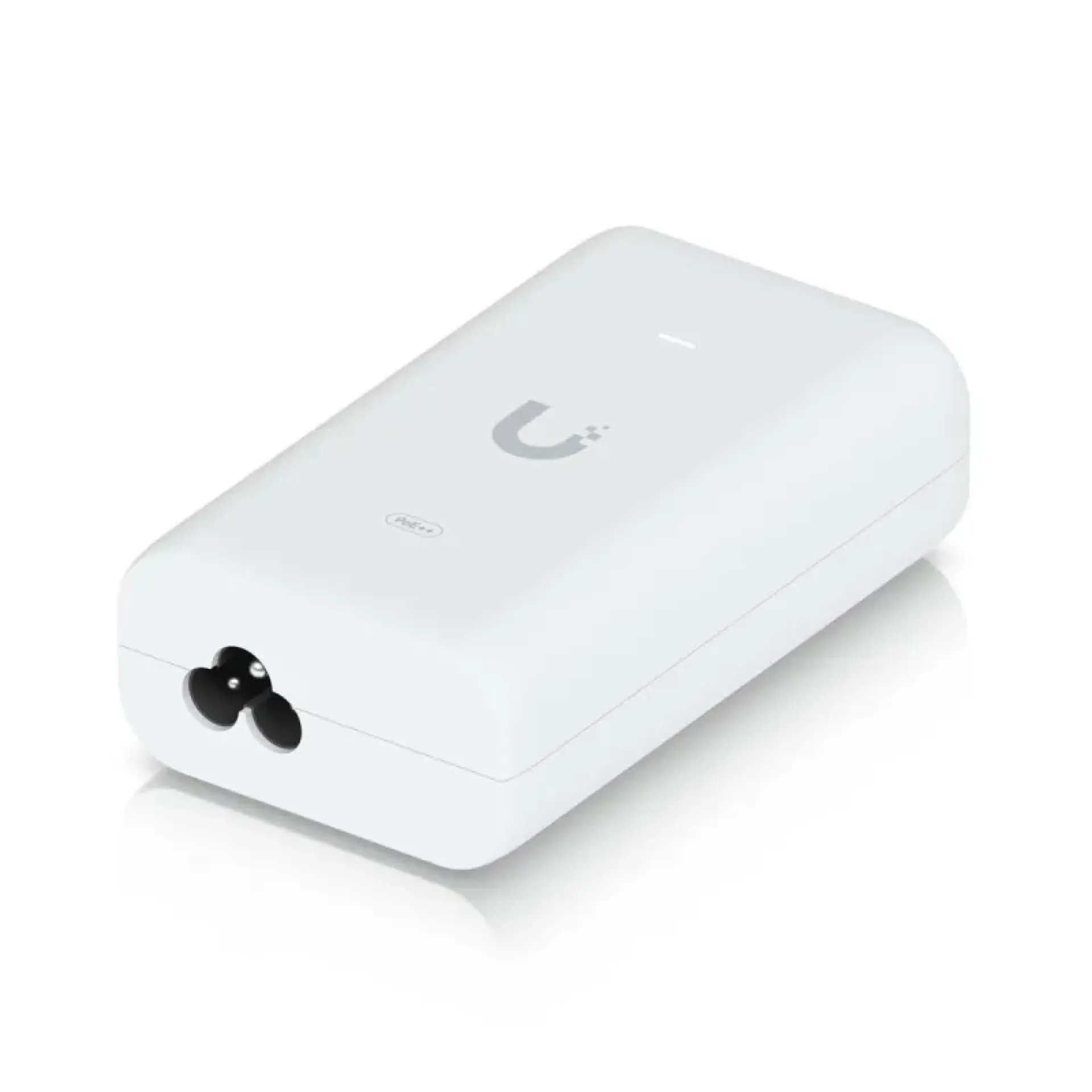

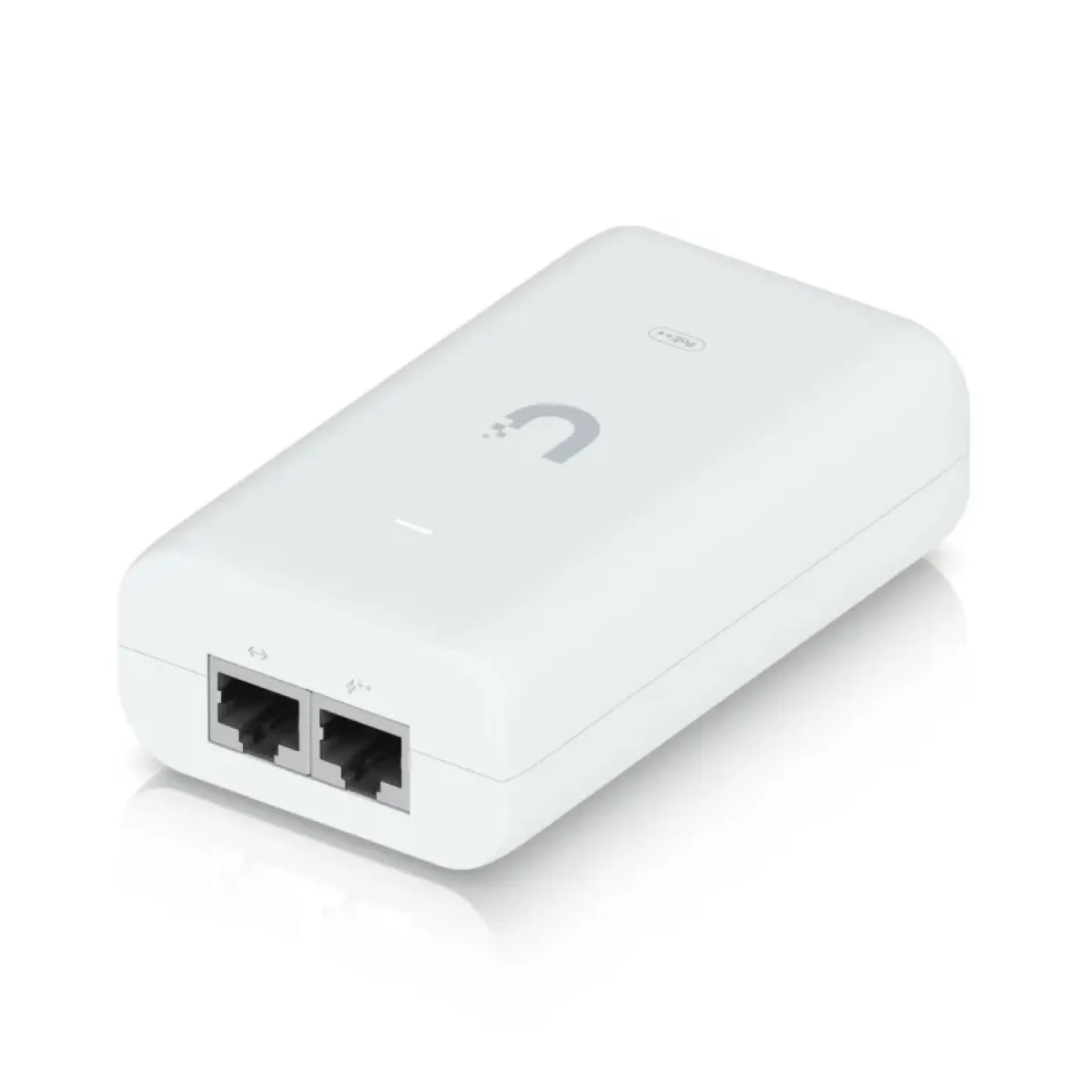

Ubiquiti PoE++ Adapter 60W U-PoE++ Overview

The Ubiquiti PoE++ Adapter 60W U-PoE++ is a high-power PoE injector designed to provide reliable power and Gigabit data connectivity to compatible UniFi devices. It delivers up to 60W of PoE++ power using 4-pair Ethernet powering, making it suitable for devices that require more power than standard PoE or PoE+ adapters can provide.

The adapter is particularly useful when a PoE++ switch is unavailable or when you want to reduce the power load on an existing PoE switch. It combines AC-to-DC power conversion with Ethernet data pass-through in a compact enclosure.

Ubiquiti PoE++ Adapter 60W U-PoE++ Price in Kenya

Ubiquiti PoE++ Adapter 60W U-PoE++ Key Specs

Ubiquiti PoE++ Adapter 60W U-PoE++ Performance

• 60W power delivery: Provides sufficient power for compatible high-demand PoE++ equipment.
• 48V DC output: Delivers stable power through the Ethernet connection.
• Gigabit networking: Supports high-speed 10/100/1000 Mbps Ethernet data connectivity.
• 4-pair powering: Uses all four twisted pairs to deliver higher PoE power.
• 85%+ efficiency: Helps provide efficient power conversion.
• Low ripple: Maximum output ripple is rated at 1%.
• Fast protection response: Protection circuitry responds in less than 1 nanosecond.

Ubiquiti PoE++ Adapter 60W U-PoE++ Smart Features

• Surge protection helps protect connected networking equipment from electrical surges.
• Clamping protection provides protection for both data and power circuits.
• Overcurrent protection helps protect the adapter and connected equipment.
• LED status indicator provides quick visual confirmation of operation.
• Plug-and-play operation simplifies deployment.
• Universal AC input supports 100–240V AC power.
• 4-pair PoE++ technology enables higher power delivery than conventional 2-pair PoE adapters.

Ubiquiti PoE++ Adapter 60W U-PoE++ Design & Build

• Compact enclosure: Measures only 106 × 63 × 34 mm.
• Lightweight construction: Weighs approximately 210g.
• Shielded RJ45 connection: Helps maintain reliable Ethernet connectivity.
• Grounded power cable: The included AC cable provides an earth-ground connection.
• Indoor installation: Designed for operation in environments between 0°C and 40°C.
• Space-saving design: Suitable for offices, network cabinets and equipment installations.

Ubiquiti PoE++ Adapter 60W U-PoE++ Connectivity

• Gigabit RJ45 LAN port for Ethernet data input.
• PoE++ RJ45 output for delivering power and data to the connected device.
• 4-pair power delivery using pins 1, 2, 4, 5 for positive and 3, 6, 7, 8 for negative.
• IEC-320 C6 AC connector for power input.
• 100–240V AC compatibility for flexible electrical installation.

Ubiquiti PoE++ Adapter 60W U-PoE++ Use Cases

• UniFi Access devices requiring higher PoE power.
• G4 PTZ cameras and other high-power security equipment.
• High-performance UniFi access points.
• Wireless mesh installations where a PoE++ switch is not available.
• Office networks requiring individual PoE++ power injection.
• Security installations requiring both data and high-power Ethernet delivery.
• Network upgrades where existing switches do not provide sufficient PoE++ power.

Ubiquiti specifically positions the U-PoE++ for devices such as UniFi Access equipment and G4 PTZ cameras, as well as other PoE++ devices.

Ubiquiti PoE++ Adapter 60W U-PoE++ Pros & Cons

Ubiquiti PoE++ Adapter 60W U-PoE++ FAQs

How much power does the Ubiquiti U-PoE++ provide?
It provides up to 60W of PoE++ power.

What voltage does the U-PoE++ output?
The adapter outputs 48V DC at 1.25A.

Does the U-PoE++ support Gigabit Ethernet?
Yes. It includes a Gigabit Ethernet connection for data pass-through.

Does U-PoE++ use 4-pair powering?
Yes. It uses all four Ethernet pairs to deliver up to 60W of PoE++ power.

Does it have surge protection?
Yes. It includes surge, clamping, peak pulse and overcurrent protection.

Does the U-PoE++ have a reset button?
No. The current Ubiquiti specifications list no reset button and no remote reset capability.

Can it replace a PoE++ switch?
It can provide PoE++ power to an individual compatible device, but it does not replace the switching functionality of a PoE++ network switch.

Ubiquiti PoE++ Adapter 60W U-PoE++ Conclusion

The Ubiquiti PoE++ Adapter 60W U-PoE++ is a practical solution for powering compatible high-demand UniFi devices without requiring a PoE++ switch. With 60W PoE++ output, 48V DC power, 4-pair powering, Gigabit Ethernet and comprehensive surge protection, it is well suited for professional networking, security and wireless deployments.

For users in Kenya who need a reliable standalone PoE++ injector, the U-PoE++ offers a compact and efficient way to deliver both power and data to compatible equipment.
