Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Price in Kenya

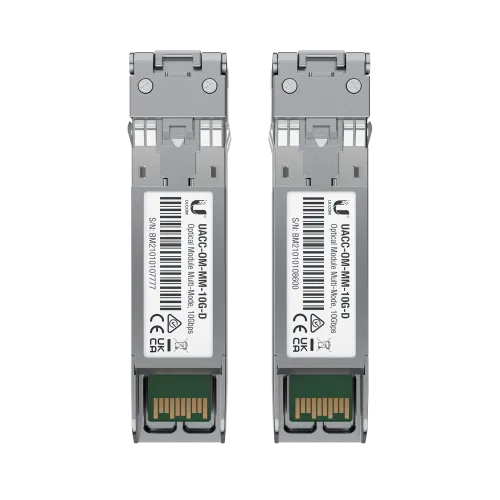

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2)

KSh 9,000

Stock Status:

Condition: New

SKU : 8874M86

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Key Features

10Gbps optical connectivity for high-speed fiber networks
850nm TX/RX wavelength for multi-mode fiber transmission
Up to 300m range with compatible multi-mode fiber
Up to 400m with OM4 fiber according to current Ubiquiti specifications
SFP+ form factor for compatible networking equipment
Duplex LC UPC connector for two-strand fiber connections
1Gbps and 10Gbps support on compatible equipment
0.8W maximum power consumption per module
2-pack configuration for connecting two compatible devices
Hot-swappable installation
0–70°C operating temperature
Suitable for UniFi and other compatible SFP/SFP+ networking equipment

Warranty: The warranty tendered hereunder, on the electronic product(s) sold under this invoice will be provided exclusively by their respective Authorized Agents/Distributors and are limited to the period indicated from the date ofyour invoice, except otherwise mentioned as per the warranty conditions as carried along with the products(s)

Warranty Guide

Description

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Overview

The Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) is a high-speed optical transceiver solution designed for short-distance 10 Gigabit Ethernet fiber connections. It uses multi-mode fiber and 850nm optics to deliver reliable high-bandwidth connectivity between compatible switches, gateways, servers and other networking equipment.

The modules feature a duplex LC UPC connector and are supplied as a matched 2-pack, making them convenient for establishing a fiber connection between two SFP+ devices. Ubiquiti specifies support for up to 300m on OM3 fiber and 400m on OM4 fiber.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Price in Kenya

Product	Price in Kenya
Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2)	KSh 8,500 – 11,000

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Key Specs

Specification	Details
Model	UACC-OM-MM-10G-D-2
Product Type	Multi-Mode Optical Transceiver
Form Factor	SFP+
Fiber Type	Multi-Mode Fiber
Data Rate	1 / 10Gbps
Wavelength	850nm TX / 850nm RX
Connector	Duplex LC UPC
Maximum Distance	300m OM3 / 400m OM4
Maximum Power Consumption	0.8W per module
Pack Size	2-Pack
Operating Temperature	0–70°C
Fiber Cable	Not included

Ubiquiti's current specifications list the module as an SFP+ transceiver supporting 1/10Gbps, duplex LC UPC, 850nm transmission and reception, and 0.8W maximum power consumption.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Performance

10Gbps throughput: Provides high-speed optical networking for demanding applications.
Short-range fiber connectivity: Supports up to 300m on OM3 and up to 400m on OM4.
850nm optics: Optimized for multi-mode fiber infrastructure.
Low power consumption: Uses a maximum of 0.8W per module.
Dual-speed support: Can support 1Gbps and 10Gbps connections on compatible equipment.
Full-duplex transmission: Uses separate fiber strands for transmitting and receiving data.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Smart Features

SFP+ plug-and-play installation simplifies deployment.
Hot-swappable design allows convenient installation in compatible equipment.
Matched 2-pack provides two modules for a complete fiber link.
Low-power operation helps reduce energy consumption.
Broad compatibility works with compatible SFP+ and SFP interfaces.
Optical diagnostics support can assist monitoring on compatible networking equipment.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Design & Build

Compact SFP+ form factor fits compatible optical ports.
Duplex LC UPC interface provides secure fiber connectivity.
Two-module package is convenient for point-to-point fiber connections.
0–70°C operating range supports typical indoor network environments.
Fiber cable sold separately, allowing users to select the required OM3 or OM4 cable.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Connectivity

SFP+ interface for high-speed optical uplinks.
Duplex LC UPC connector uses two fiber strands.
850nm TX/RX wavelength for multi-mode fiber.
1Gbps/10Gbps support provides connection flexibility.
OM3 and OM4 compatibility for short-distance fiber networking.
Up to 400m on OM4 for compatible installations.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Use Cases

Switch-to-switch uplinks requiring 10Gbps fiber connectivity.
Server-to-switch connections in data centers and server rooms.
Enterprise network backbones for short-distance high-speed links.
Data center racks where high bandwidth and low latency are required.
Campus network connections over suitable multi-mode fiber.
Structured indoor fiber networks between network cabinets.
Network upgrades from 1Gbps to 10Gbps connectivity.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Pros & Cons

Pros	Cons
Supports up to 10Gbps	Limited distance compared with single-mode modules
850nm multi-mode optics	Fiber cable sold separately
Up to 300m on OM3	Requires compatible SFP/SFP+ equipment
Up to 400m on OM4	Uses two fiber strands
Duplex LC UPC connector	Not designed for long-distance 10km links
Low 0.8W power consumption	Best suited to short-range fiber deployments
Supplied as a 2-pack	Requires correct multi-mode fiber

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) FAQs

What is the UACC-OM-MM-10G-D-2?
It is a 2-pack of Ubiquiti 10Gbps multi-mode optical transceiver modules designed for compatible SFP/SFP+ equipment.

What speed does it support?
The current Ubiquiti specification supports 1Gbps and 10Gbps data rates.

What is the maximum transmission distance?
It supports up to 300m with OM3 fiber and 400m with OM4 fiber.

What wavelength does it use?
It uses 850nm for both transmission and reception.

What connector does it use?
It uses a duplex LC UPC connector.

Is the fiber cable included?
No. Compatible multi-mode fiber cables must be purchased separately.

How much power does each module consume?
Each module has a maximum power consumption of 0.8W.

Can it be used with 1Gbps equipment?
Yes, Ubiquiti lists 1Gbps and 10Gbps as supported data rates, subject to host-device compatibility.

Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) Conclusion

The Ubiquiti Multi-Mode Transceiver Module 10Gbps 850nm 2-Pack (UACC-OM-MM-10G-D-2) is a reliable solution for high-speed, short-distance fiber networking. With 10Gbps connectivity, 850nm optics, duplex LC UPC connectors and support for up to 300m on OM3 or 400m on OM4, it is well suited to enterprise networks, data centers, server rooms and switch-to-switch uplinks.
