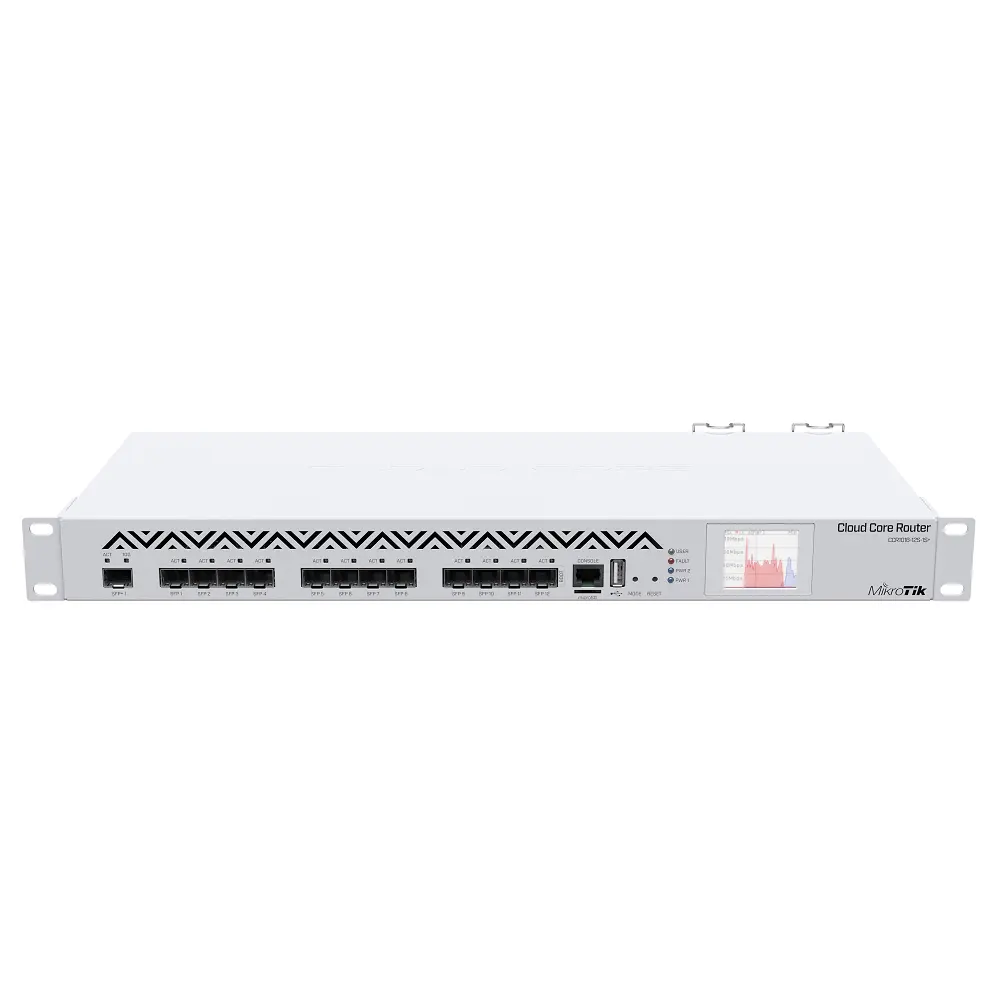

MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Overview
The MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage is an enterprise-grade fiber router designed for ISPs, data centers, corporate networks and other high-performance networking environments.
It combines a powerful 16-core 1.2GHz Tilera processor with 2GB RAM and a high-density fiber interface configuration consisting of 12 SFP ports and one SFP+ port. This makes it suitable for fiber aggregation, core routing, high-speed uplinks and demanding routing applications.
The router runs RouterOS with a Level 6 license, giving network administrators extensive control over routing, firewall, VPN, VLAN, traffic management and other advanced networking functions.
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Price in Kenya
| Product |
Price in Kenya |
| MikroTik CCR1016-12S-1S+ |
KSh 93,500 – 120,000 |
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Key Specs
| Specification |
Details |
| Product Code |
CCR1016-12S-1S+ |
| Product Type |
Cloud Core Router |
| Architecture |
TILE |
| CPU |
Tilera TLR4-01680 |
| CPU Cores |
16 |
| CPU Frequency |
1.2GHz per core |
| RAM |
2GB |
| Storage |
128MB NAND |
| SFP Ports |
12 × 1G SFP |
| SFP+ Ports |
1 × 10G SFP+ |
| USB |
1 × USB Type-A |
| Console |
RJ45 Serial |
| Memory Card |
1 × microSD |
| Operating System |
RouterOS |
| License |
Level 6 |
| Power Inputs |
2 × AC |
| Input Voltage |
100–240V AC |
| Maximum Power Consumption |
Approximately 47.5W |
| Cooling |
2 × Fans |
| Dimensions |
443 × 197 × 44mm |
| Rack Size |
1U |
| Operating Temperature |
-20°C to 60°C |
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Performance
- High packet-processing capability: The 16-core processor is designed for demanding routing environments.
- High-density fiber routing: Twelve SFP ports provide multiple 1Gbps fiber interfaces.
- 10Gbps uplink: The dedicated SFP+ port supports high-speed backbone connections.
- Advanced routing: RouterOS supports complex routing configurations and network policies.
- IPsec acceleration: Hardware-assisted IPsec helps improve VPN performance.
- Traffic management: RouterOS provides extensive queueing, firewall and traffic-control capabilities.
- Enterprise networking: Designed for environments requiring high availability and substantial routing capacity.
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Smart Features
- RouterOS Level 6 for advanced network administration.
- BGP and OSPF support for professional routing environments.
- VLAN support for network segmentation.
- Firewall and NAT for traffic control and security.
- VPN functionality for secure network connections.
- IPsec hardware acceleration for supported encrypted traffic.
- Monitoring tools for tracking system and network performance.
- LCD touchscreen for convenient status monitoring.
- Temperature and voltage monitoring for hardware health management.
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Design & Build
- 1U rackmount chassis designed for standard network racks.
- 443 × 197 × 44mm compact rackmount dimensions.
- Durable enclosure suitable for professional networking environments.
- Dual cooling fans help maintain operating temperatures.
- Dual AC power supplies provide power redundancy.
- Front-panel LCD touchscreen provides system information.
- Rack ears are included for installation in compatible network cabinets.
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Connectivity
- 12 × 1Gbps SFP ports
- 1 × 10Gbps SFP+ port
- 1 × RJ45 serial console
- 1 × USB Type-A
- 1 × microSD slot
- Includes an RJ45 SFP copper module for management connectivity.
- Supports compatible SFP and SFP+ optical modules for fiber networking.
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Use Cases
- ISP networks requiring high-density fiber routing.
- Data centers for core network routing and aggregation.
- Enterprise networks with multiple fiber connections.
- Fiber backbone networks requiring 1Gbps and 10Gbps connectivity.
- WISP infrastructure for centralized routing.
- Telecommunication networks requiring redundant power.
- Network service providers handling large numbers of routing interfaces.
- Data-center interconnections using SFP+ uplinks.
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Pros & Cons
| Pros |
Cons |
| 16-core processor |
No built-in copper Ethernet ports |
| 12 × 1G SFP ports |
Older TILE architecture |
| 1 × 10G SFP+ port |
Requires compatible SFP/SFP+ modules for fiber links |
| 2GB RAM |
Active fan cooling |
| RouterOS Level 6 |
More complex for beginners |
| Dual redundant power supplies |
Relatively high power consumption |
| 1U rackmount design |
No built-in Wi-Fi |
| IPsec hardware acceleration |
— |
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage FAQs
How many SFP ports does the MikroTik CCR1016-12S-1S+ have?
It has 12 SFP ports for 1Gbps connectivity.
Does the CCR1016-12S-1S+ support 10Gbps?
Yes. It includes one SFP+ port designed for 10Gbps connectivity.
How much RAM does the CCR1016-12S-1S+ have?
The router has 2GB of RAM and 128MB of NAND storage.
Does the CCR1016-12S-1S+ have Ethernet ports?
The router itself has no built-in RJ45 Ethernet switching ports. An RJ45 SFP copper module is included, which can provide copper management connectivity through one of the SFP cages.
Does it support redundant power?
Yes. It has two AC power inputs, allowing redundant power operation.
What operating system does the CCR1016-12S-1S+ use?
It runs MikroTik RouterOS with a Level 6 license.
Is the CCR1016-12S-1S+ suitable for an ISP?
Yes. Its high-density SFP connectivity, 10G SFP+ uplink, powerful multi-core processor and advanced RouterOS features make it suitable for ISP and carrier-grade networking environments.
MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage Conclusion
The MikroTik CCR1016-12S-1S+ Cloud Core Router 1U Rackmount 12×SFP Cage is built for professional fiber-based networking environments. Its 16-core processor, 12 × 1G SFP ports, 10G SFP+ uplink, 2GB RAM, RouterOS Level 6 and redundant power supplies make it a strong option for ISPs, data centers, enterprise networks and fiber aggregation applications.
