Description

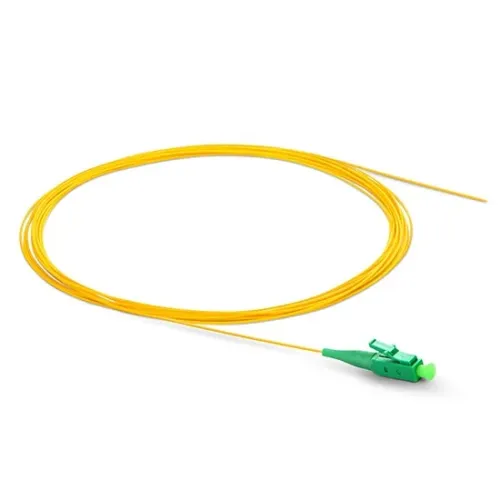

Lightwave LW-PT-LCA-MM Fiber Pigtail Introduction
The Lightwave LW-PT-LCA-MM Fiber Pigtail is a 2-meter multimode fiber termination solution designed for reliable optical connectivity and fiber splicing. It features an LC APC connector on one end while the other end is left unterminated for connection to a fiber cable through fusion or mechanical splicing.
Using OM3 multimode fiber, the Lightwave LW-PT-LCA-MM is suitable for high-speed short- to medium-distance network connections. Its compact LC connector and 900μm tight-buffered construction make it convenient for use inside patch panels splice trays optical distribution frames and data center fiber management systems.
Lightwave LW-PT-LCA-MM Fiber Pigtail Price in Kenya
| Product |
Price |
| Lightwave LW-PT-LCA-MM Fiber Pigtail |
KSh 650 |
Lightwave LW-PT-LCA-MM Fiber Pigtail Key Specifications
| Specification |
Details |
| Brand |
Lightwave |
| Model |
LW-PT-LCA-MM |
| Product Type |
Fiber Optic Pigtail |
| Connector |
LC APC |
| Fiber Mode |
Multimode |
| Fiber Type |
OM3 |
| Core/Cladding |
50/125μm |
| Cable Length |
2 Metres |
| Buffer |
900μm Tight Buffer |
| Ferrule |
Zirconia Ceramic |
| Insertion Loss |
Less Than 0.3dB |
| Return Loss |
Greater Than 35dB |
| Wavelengths |
850nm / 1300nm |
| Jacket |
LSZH |
| Applications |
Data Centers Enterprise Networks and Campus Networks |
Lightwave LW-PT-LCA-MM Fiber Pigtail Performance
- OM3 multimode fiber supports high-speed data transmission over short and medium distances.
- The LC APC connector helps reduce unwanted optical reflections.
- Low insertion loss helps maintain efficient optical signal transmission.
- The 2-meter length provides sufficient working space for fiber splicing and routing.
- The factory-terminated connector provides consistent optical performance.
- Suitable for high-bandwidth local area network and data center applications.
Lightwave LW-PT-LCA-MM Fiber Pigtail Build Quality & Design
- Features a precision zirconia ceramic ferrule for accurate fiber alignment.
- The 900μm tight buffer helps protect the optical fiber during handling and splicing.
- Compact LC connector design is suitable for high-density fiber installations.
- LSZH jacket construction helps reduce smoke and halogen emissions in indoor environments.
- The flexible design allows convenient routing inside splice trays and fiber distribution panels.
Lightwave LW-PT-LCA-MM Fiber Pigtail Connectivity & Compatibility
- Uses an LC APC connector on the terminated end.
- Designed for compatible OM3 multimode fiber systems.
- Suitable for fiber patch panels optical distribution frames and splice trays.
- The unterminated end can be fusion spliced to a multimode fiber cable.
- Suitable for compatible LC APC adapters and optical networking equipment.
- Ideal for enterprise LAN data center and campus network infrastructure.
Lightwave LW-PT-LCA-MM Fiber Pigtail Ideal Use Cases
- Data center fiber installations
- Enterprise networks
- Campus networks
- Fiber optic patch panels
- Optical distribution frames
- Fiber splicing
- Structured fiber cabling
- CCTV fiber networks
- High-speed LAN infrastructure
- Telecommunications installations
Lightwave LW-PT-LCA-MM Fiber Pigtail Pros and Cons
| Pros |
Cons |
| LC APC connector |
Designed for multimode applications |
| OM3 50/125μm fiber |
Requires splicing during installation |
| 2-meter length |
Requires compatible LC APC equipment |
| Low insertion loss |
Not intended for long-distance single-mode links |
| 900μm tight buffer |
|
| Zirconia ceramic ferrule |
|
| LSZH jacket |
|
| Suitable for high-speed network applications |
|
Lightwave LW-PT-LCA-MM Fiber Pigtail FAQs
What type of fiber does the Lightwave LW-PT-LCA-MM use?
- It uses OM3 multimode 50/125μm fiber.
What connector does the Lightwave LW-PT-LCA-MM have?
- It features an LC APC connector on the terminated end.
How long is the Lightwave LW-PT-LCA-MM?
- The fiber pigtail has a length of 2 meters.
What is the purpose of a fiber pigtail?
- A fiber pigtail provides a factory-terminated connector on one end while the other end can be spliced to the main fiber cable.
Can the Lightwave LW-PT-LCA-MM be used in a data center?
- Yes. Its OM3 multimode fiber and compact LC APC connector make it suitable for compatible data center fiber installations.
Is the Lightwave LW-PT-LCA-MM single-mode or multimode?
- It is a multimode fiber pigtail using OM3 50/125μm fiber.
What is the price of the Lightwave LW-PT-LCA-MM in Kenya?
Lightwave LW-PT-LCA-MM Fiber Pigtail Conclusion
The Lightwave LW-PT-LCA-MM Fiber Pigtail is a practical solution for terminating and splicing multimode fiber optic networks. Its OM3 50/125μm fiber, LC APC connector, 2-meter length, 900μm tight buffer and LSZH jacket make it suitable for data centers, enterprise networks, campus installations and other professional fiber applications.
At KSh 650, the Lightwave LW-PT-LCA-MM provides an affordable and reliable option for fiber installation and termination projects requiring multimode connectivity.
