Description

Overview of Fanvil CA400 All-in-One Conference Solution

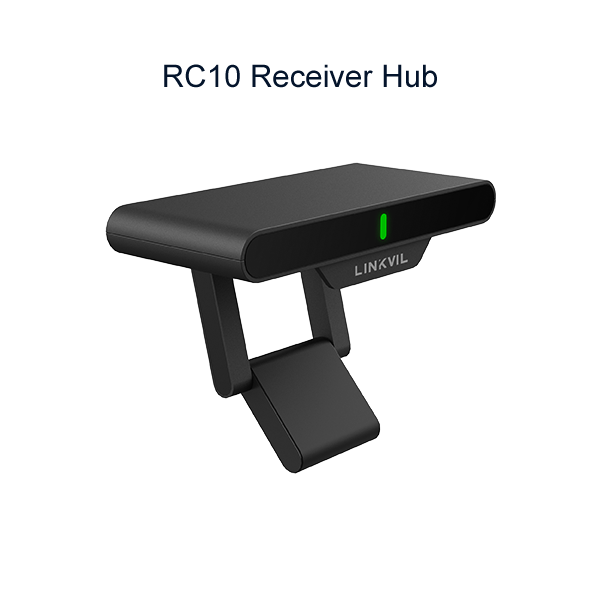

The Fanvil CA400 All-in-One Conference Solution is a wireless meeting-room system designed for small and medium-sized conference rooms. It combines the CM70 4K UHD camera, MS10 screen-sharing speakerphone and RC10 receiver hub into a single collaboration solution. The system supports 4K/30fps wireless screen sharing, automatic camera framing, 360° voice pickup through eight MEMS microphones and wireless access to UVC cameras. With plug-and-play USB-C connectivity, HDMI output, up to 10m wireless transmission and support for up to three optional CP20 screen-sharing pods, the CA400 provides a convenient setup for presentations, video meetings and collaborative workspaces.

Fanvil CA400 All-in-One Conference Solution Price in Kenya

Specifications of Fanvil CA400 All-in-One Conference Solution

Fanvil CA400 All-in-One Conference Solution Video and Screen-Sharing Performance

• 4K UHD Camera: The CM70 camera uses an IMX415 1/2.8-inch sensor and supports up to 3840 × 2160 resolution at 30fps, providing detailed video for professional meetings and presentations.

• Ultra-Wide Viewing: The camera provides a 118.5° diagonal field of view, 109.9° horizontal field of view and 74.6° vertical field of view, helping capture participants across a conference table.

• Automatic Framing: Automatic framing keeps meeting participants in focus and adjusts the camera view as attendees move, reducing the need for manual camera adjustment.

• 4K Wireless Presentation: The MS10 supports wireless screen sharing at up to 3840 × 2160 at 30fps, allowing presentations and other visual content to be displayed wirelessly on a compatible large screen.

Fanvil CA400 All-in-One Conference Solution Audio and Collaboration Features

• 360° Voice Pickup: Eight built-in MEMS microphones provide 360° voice pickup with a range of up to 4 metres, making the MS10 suitable for small and medium-sized meeting rooms.

• Enhanced Voice Processing: Beamforming, acoustic echo cancellation, adaptive noise suppression, automatic gain control and reverberation reduction work together to improve voice clarity during meetings.

• Full-Duplex Communication: Full-duplex audio allows participants to speak and hear simultaneously without the interruptions associated with half-duplex communication.

• 3W Conference Speaker: The integrated 50mm 4Ω/3W speaker provides audio output up to 85dB SPL at 1 metre for meeting-room conversations and conferencing.

Fanvil CA400 All-in-One Conference Solution Connectivity and Installation Features

• Plug-and-Play Deployment: The CA400 is designed to simplify meeting-room installation without requiring system integration or software installation. A single USB-C connection can provide speakerphone, wireless screen-sharing and camera functionality.

• Wireless Camera Access: The RC10 receiver supports UVC cameras and can stream camera video wirelessly at up to 1920 × 1080 at 30fps.

• Multiple Presenter Support: The RC10 supports one MS10 speakerphone and up to three optional CP20 screen-sharing pods, allowing multiple users to participate in wireless presentations.

• Flexible Connections: HDMI, USB-A 3.0 and USB-C interfaces provide connectivity with compatible conference displays, computers and peripherals.

Applications of Fanvil CA400 All-in-One Conference Solution

• Corporate meeting rooms

• Boardrooms

• Small conference rooms

• Medium-sized conference rooms

• Training rooms

• Classrooms

• Business presentation rooms

• Hybrid meeting spaces

• Video conferencing rooms

• Collaborative workspaces

• Educational institutions

• Corporate offices

Pros and Cons of Fanvil CA400 All-in-One Conference Solution

FAQs About Fanvil CA400 All-in-One Conference Solution

What is included in the Fanvil CA400?

The CA400 includes the CM70 USB camera, MS10 screen-sharing speakerphone and RC10 receiver hub, together with a remote control, cables, power adapter and installation guide.

What resolution does the Fanvil CA400 support?

The CA400 supports 4K wireless screen sharing at 3840 × 2160 at 30fps. The CM70 camera also supports up to 3840 × 2160 at 30fps when connected through USB 3.0.

How many people can the Fanvil CA400 microphone system pick up?

The MS10 has eight MEMS omnidirectional microphones with a pickup range of up to 4 metres, designed for small and medium meeting rooms.

Does the Fanvil CA400 support automatic framing?

Yes. The CM70 camera supports automatic framing, helping keep meeting participants within the camera view.

How far can the Fanvil CA400 transmit wirelessly?

The CA400 provides a wireless transmission distance of up to 10 metres using its 5GHz wireless connection.

Can the Fanvil CA400 support multiple presenters?

Yes. The RC10 receiver supports one MS10 and up to three optional CP20 wireless screen-sharing pods.

Does the Fanvil CA400 require software installation?

No. The CA400 is designed for plug-and-play operation without software installation, simplifying deployment in meeting rooms.

Does the Fanvil CA400 support external USB cameras?

Yes. The RC10 receiver supports UVC cameras and wireless camera streaming at up to 1920 × 1080 at 30fps.

Conclusion

The Fanvil CA400 All-in-One Conference Solution combines 4K wireless screen sharing, a 4K UHD camera, automatic framing, 360° microphone pickup and a 3W conference speaker into a compact meeting-room system. Its plug-and-play USB-C connectivity, HDMI output, UVC camera support, 10m wireless transmission and support for additional CP20 screen-sharing pods make it a practical solution for small and medium-sized conference rooms, boardrooms, training spaces and collaborative offices.
