Description

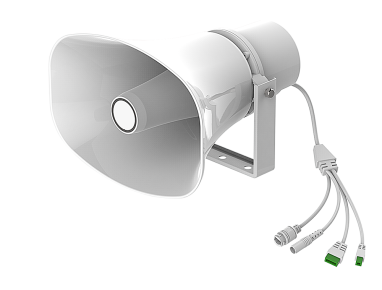

Overview of Fanvil A233 Horn Speaker

The Fanvil A233 Horn Speaker is a commercial-grade IP audio terminal designed for outdoor broadcasting, public address, emergency announcements, paging and two-way communication. It can operate as an independent network audio device or integrate with unified communication, video surveillance, access control, broadcast and intercom systems. Its IP66 protection rating provides resistance against dust and water, making it suitable for demanding outdoor installations.

The A233 features an 8Ω horn speaker with output of up to 30W when powered through a 24V DC supply. It provides 8W output through PoE and 15W through PoE+, giving installers flexibility when choosing the appropriate power infrastructure. The speaker delivers up to 120dB maximum sound pressure level and has a 350Hz–7.5kHz frequency response for clear and powerful announcements across public and commercial spaces.

For network-based communication, the Fanvil A233 supports SIP 2.0 and ONVIF, allowing it to integrate with compatible IP communication and security systems. It has two SIP lines and supports a range of audio codecs, including G.711, G.722 and Opus. G.722 and Opus provide HD voice communication, while MP3 and WAV support enables the speaker to handle lossless audio broadcasting.

The A233 also supports multicast broadcasting with up to 20 multicast partitions. This makes it suitable for zoned public-address systems where different speakers or areas need to receive specific announcements. Its built-in 24MB storage can be used for stored audio files, scheduled broadcasts and customized emergency notification sounds.

A built-in omnidirectional microphone provides two-way communication and intercom functionality. The speaker also includes one short-circuit input and one short-circuit output for integration with compatible alarm, security and control equipment. Its U-bracket installation system allows the speaker to be securely positioned on walls and other suitable mounting surfaces.

Fanvil A233 Horn Speaker Price in Kenya

Specifications of Fanvil A233 Horn Speaker

Specifications are based on Fanvil's A233 documentation.

Fanvil A233 Horn Speaker Audio Performance Features

• 30W High-Power Speaker: The A233 uses an 8Ω horn speaker capable of up to 30W output when powered through DC 24V, providing high-volume audio for outdoor announcements, paging and public-address applications.

• Up to 120dB Maximum SPL: The speaker can produce up to 120dB maximum sound pressure level at 1 metre, making it suitable for environments where announcements need to be clearly heard over background noise.

• Wide Audio Support: The A233 supports G.722 and Opus for HD voice communication as well as MP3 and WAV for audio broadcasting, allowing it to handle both two-way communication and stored announcements.

• 20 Multicast Partitions: Support for up to 20 multicast partitions allows audio broadcasts to be organized into different zones, making the A233 suitable for larger networked public-address systems.

• 24MB Audio Storage: Built-in 24MB storage allows the speaker to store audio files for scheduled broadcasts, emergency notifications and customized announcements.

Fanvil A233 Horn Speaker Network and Broadcasting Features

• SIP 2.0 Connectivity: SIP 2.0 support allows the A233 to integrate with compatible IP PBX, VoIP and SIP-based communication systems.

• ONVIF Support: ONVIF compatibility allows the speaker to integrate with supported video surveillance and network security systems.

• Dual SIP Lines: Two SIP lines provide additional flexibility for IP communication and intercom deployments.

• Network Broadcasting: Multicast functionality enables the A233 to receive network-based broadcasts and participate in centralized public-address systems.

• System Integration: The speaker can integrate with unified communication, video surveillance, access control, digital signage and fire alarm systems for coordinated announcements and emergency communication.

Fanvil A233 Horn Speaker Outdoor and Installation Features

• IP66 Protection: The IP66-rated housing provides protection against dust and water, making the A233 suitable for many outdoor and demanding commercial environments.

• PoE and PoE+ Power: PoE and PoE+ support allows the speaker to receive network connectivity and power through Ethernet, helping simplify installation and reduce additional cabling.

• 30W DC Operation: When connected to a 24V DC power supply, the A233 can deliver up to 30W speaker output for higher-power broadcasting applications.

• U-Bracket Installation: The supplied U-bracket provides a practical mounting method for walls and other suitable structures.

• Built-in Microphone: An integrated omnidirectional microphone enables two-way communication and intercom functionality for compatible installations.

Applications of Fanvil A233 Horn Speaker

• Outdoor public address systems

• Emergency broadcasting

• IP paging systems

• School announcements

• Factory broadcasting

• Warehouse communication

• Campus-wide announcements

• Transport facilities

• Security systems

• Access control integration

• Fire alarm integration

• Industrial facilities

• Commercial buildings

• Public spaces

Pros and Cons of Fanvil A233 Horn Speaker

FAQs About Fanvil A233 Horn Speaker

What is the Fanvil A233 Horn Speaker used for?

The Fanvil A233 is designed for IP broadcasting, public address, paging, emergency announcements and two-way communication in outdoor and commercial environments.

What is the maximum power output of the Fanvil A233?

The A233 provides 8W through PoE, 15W through PoE+ and up to 30W through a 24V DC power supply.

Is the Fanvil A233 waterproof?

The A233 has an IP66 protection rating, providing protection against dust and water and making it suitable for many outdoor applications.

Does the Fanvil A233 support SIP?

Yes. The A233 supports SIP 2.0, allowing integration with compatible IP PBX, VoIP and SIP communication systems.

How loud is the Fanvil A233?

The A233 has a maximum sound pressure level of 120dB at 1 metre when operating at 30W, making it suitable for loud outdoor and industrial environments.

Does the Fanvil A233 support multicast broadcasting?

Yes. The A233 supports 20 multicast partitions, allowing it to be used for zoned network broadcasting and public-address systems.

Does the Fanvil A233 have a microphone?

Yes. The speaker has a built-in omnidirectional microphone for two-way communication and intercom applications.

Can the Fanvil A233 be used outdoors?

Yes. Its IP66 protection rating, high-volume horn design and multiple power options make it suitable for many outdoor public-address and emergency broadcasting installations.

How is the Fanvil A233 installed?

The A233 uses a U-bracket installation system, allowing it to be mounted securely on walls and other suitable structures.

Conclusion

The Fanvil A233 Horn Speaker is a powerful IP audio solution for outdoor broadcasting, public-address systems, emergency announcements and two-way communication. Its 30W maximum output, 120dB SPL, SIP 2.0, ONVIF, multicast broadcasting and built-in microphone provide the functionality required for professional networked audio installations.

With IP66 protection, PoE/PoE+ support, 20 multicast partitions and 24MB audio storage, the A233 is particularly suitable for schools, factories, warehouses, campuses, transport facilities and other commercial or public environments requiring reliable IP-based broadcasting.
