Description

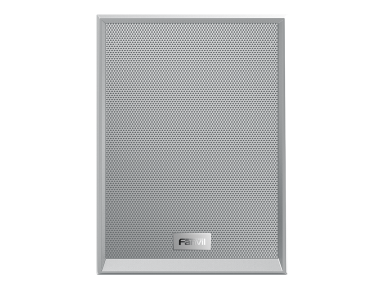

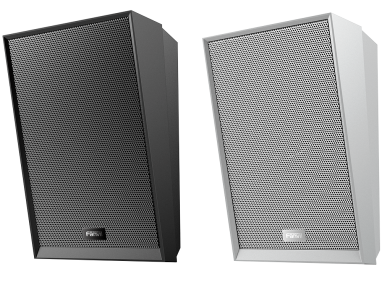

Overview of Fanvil A212 Wall-mounted Speaker

The Fanvil A212 Wall-mounted Speaker is a commercial-grade IP audio terminal designed for broadcasting, intercom and communication applications in offices, schools, public facilities and other commercial environments. It supports SIP 2.0 and can operate as an independent IP audio device or integrate with broader communication, surveillance, access control and broadcasting systems.

The A212 combines network-based audio communication with wall-mounted installation, making it suitable for deployments where clear announcements and two-way communication are required without occupying floor or desk space. It supports both PoE and an external DC power supply, allowing the speaker to receive power and network connectivity through a single Ethernet cable when connected to a compatible PoE switch.

For broadcasting applications, the Fanvil A212 supports multicast audio with up to 10 configurable listening addresses. It supports G.722 and Opus codecs for high-quality voice communication and can be integrated into Fanvil broadcasting and intercom systems.

The speaker also provides intercom functionality, including automatic answering and configurable intercom settings. Its three short-circuit input interfaces can be connected to external devices such as switches, infrared sensors, door sensors and vibration sensors, while a short-circuit output can be used with compatible external equipment.

An additional SPK interface allows the A212 to connect to an external passive speaker rated at 8Ω/15W, providing an option for expanding the audio output in suitable installations. The device can therefore be used as part of a larger audio communication or public-address setup.

With its wall-mounted design, network connectivity, PoE support, multicast broadcasting and intercom capabilities, the Fanvil A212 is well suited for professional installations requiring centralized IP-based audio communication and announcements.

Fanvil A212 Wall-mounted Speaker Price in Kenya

Specifications of Fanvil A212 Wall-mounted Speaker

Specifications are based on Fanvil's A212 documentation.

Fanvil A212 Wall-mounted Speaker Audio and Broadcasting Features

• 15W Speaker Output: The A212 provides speaker output suitable for IP broadcasting, announcements, intercom communication and general public-area audio applications.

• High-Quality Voice Codecs: Support for G.722 and Opus allows the A212 to deliver high-quality voice communication, while additional codecs provide compatibility with different SIP communication systems.

• Multicast Broadcasting: The speaker supports multicast communication and can be configured with up to 10 multicast listening addresses, making it suitable for zone-based announcements and network broadcasting.

• Broadcast and Intercom Support: The A212 combines broadcasting and intercom functionality in one IP audio terminal, allowing it to handle both announcements and two-way communication.

• External Speaker Expansion: An SPK interface supports an external 8Ω/15W passive speaker, providing an option to expand audio coverage where required.

Fanvil A212 Wall-mounted Speaker Network and SIP Features

• SIP 2.0 Support: SIP 2.0 compatibility allows the A212 to operate as an IP-based communication endpoint within compatible SIP systems.

• 10/100Mbps Ethernet: The RJ45 network interface provides a standard Ethernet connection for network communication and configuration.

• PoE Power: Power over Ethernet allows the speaker to receive both network connectivity and power through a single Ethernet cable, simplifying installation where compatible PoE infrastructure is available.

• Flexible Network Configuration: The A212 supports IPv4 and IPv6 networking, with Static IP, DHCP and PPPoE configuration options.

• VPN Support: L2TP and OpenVPN support provides additional network deployment options for suitable business environments.

Fanvil A212 Wall-mounted Speaker Intercom and Installation Features

• Three Short-Circuit Inputs: The A212 provides three input interfaces for connecting external devices such as switches, infrared sensors, door sensors and vibration sensors.

• Short-Circuit Output: A dedicated output interface can be connected to compatible external equipment such as electric locks for integrated control applications.

• Wall-Mounted Design: The A212 is designed for wall installation, helping save space and providing a practical deployment method for offices, schools and public areas.

• Indoor and Outdoor Applications: Fanvil describes the A212 as suitable for both indoor and outdoor scenarios, making it adaptable to different commercial broadcasting environments.

• Flexible Power Options: The speaker can operate through PoE or an external DC 24V/2A power supply, providing flexibility when planning an installation.

Applications of Fanvil A212 Wall-mounted Speaker

• Office broadcasting

• School announcements

• Public-area announcements

• IP paging systems

• SIP intercom systems

• Access control integration

• Security systems

• Commercial buildings

• Educational institutions

• Retail environments

• Industrial facilities

• Public facilities

• Emergency announcements

Pros and Cons of Fanvil A212 Wall-mounted Speaker

FAQs About Fanvil A212 Wall-mounted Speaker

What is the Fanvil A212 Wall-mounted Speaker used for?

The Fanvil A212 is designed for IP broadcasting, paging, intercom communication and public-area announcements in commercial, educational and other professional environments.

Does the Fanvil A212 support PoE?

Yes. The A212 supports Power over Ethernet (PoE), allowing it to receive power and network connectivity through a compatible Ethernet connection.

What is the speaker power of the Fanvil A212?

The A212 supports speaker output of up to 15W. It also provides an SPK interface for connecting an external 8Ω/15W passive speaker.

Does the Fanvil A212 support SIP?

Yes. The A212 supports SIP 2.0, allowing it to integrate with compatible IP communication and broadcasting systems.

How many multicast zones does the Fanvil A212 support?

The A212 supports up to 10 multicast listening addresses, allowing it to participate in zone-based IP broadcasting systems.

Can the Fanvil A212 be used for intercom?

Yes. The A212 supports SIP intercom functionality, including automatic answering and configurable intercom settings.

Can external sensors be connected to the Fanvil A212?

Yes. The A212 provides three short-circuit input interfaces that can connect to devices such as infrared sensors, door sensors, switches and vibration sensors.

Can the Fanvil A212 connect to an external speaker?

Yes. Its SPK interface supports an 8Ω/15W passive speaker, allowing the audio system to be expanded where necessary.

How is the Fanvil A212 installed?

The A212 is designed for wall-mounted installation. Its mounting design helps save space and makes it suitable for permanent commercial audio installations.

Conclusion

The Fanvil A212 Wall-mounted Speaker is a commercial IP audio solution designed for broadcasting, paging and intercom applications. With SIP 2.0, PoE, 10/100Mbps Ethernet, multicast broadcasting and support for high-quality audio codecs, it can integrate into a range of IP-based communication systems.

Its 15W speaker output, three short-circuit inputs, external speaker support and wall-mounted design make it particularly suitable for offices, schools, public facilities, security systems and other environments requiring centralized IP audio communication.
