Description

Overview of Fanvil A201 Ceiling Speaker

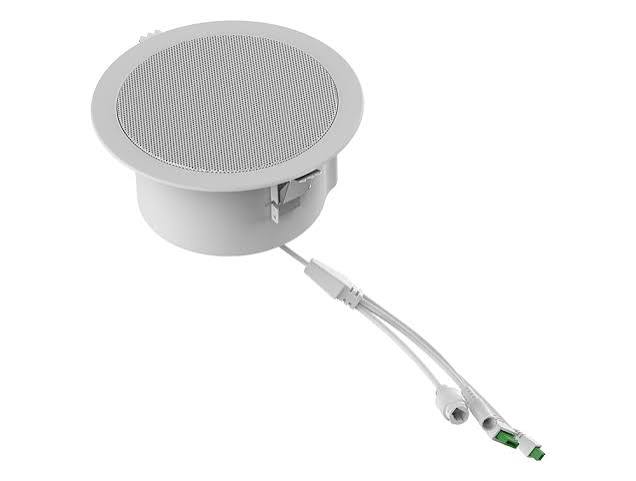

The Fanvil A201 Ceiling Speaker is a commercial-grade IP audio terminal designed for ceiling-mounted installation in offices, schools, hotels, retail spaces and other indoor environments. It can operate as an independent network audio device or integrate with unified communication, video surveillance, access control, Fanvil broadcasting and intercom systems, digital signage and fire alarm systems.

The A201 uses an 8Ω speaker with up to 10W output when powered through PoE+ or DC power, while standard PoE provides 6W. It delivers a frequency response of 250Hz–20kHz, 90 ±3dB sensitivity and up to 100dB maximum sound pressure level, making it suitable for voice announcements, paging and background audio in indoor areas.

For network communication, the Fanvil A201 supports SIP 2.0 and two SIP lines. It also supports HD voice codecs including G.722 and Opus, as well as MP3 and WAV for lossless audio broadcasting. The speaker supports up to 20 multicast partitions, allowing different areas or zones to receive designated broadcasts.

The built-in omnidirectional microphone adds two-way communication capability and supports functions such as intercom, monitoring and self-testing. The A201 also provides one short-circuit input and one short-circuit output for integration with compatible security and alarm equipment.

With 24MB of internal audio storage, the A201 can store audio files for scheduled broadcasts, emergency notifications and customized announcements. PoE and PoE+ support allows power and network connectivity to be delivered over Ethernet, while a DC 12V–24V power option provides an alternative for installations without suitable PoE infrastructure.

Fanvil A201 Ceiling Speaker Price in Kenya

Specifications of Fanvil A201 Ceiling Speaker

Specifications are based on Fanvil's current A201 documentation.

Fanvil A201 Ceiling Speaker Audio and Broadcasting Features

• 10W Ceiling Speaker: The A201 uses an 8Ω speaker capable of up to 10W output through PoE+ or DC power, providing suitable audio coverage for indoor announcements, paging and background music.

• 100dB Maximum SPL: With a maximum sound pressure level of 100dB, the A201 provides sufficient output for clear voice announcements across offices, classrooms and other indoor environments.

• HD Voice and Lossless Audio: Support for G.722 and Opus provides HD voice communication, while MP3 and WAV support enables lossless audio broadcasting.

• 20 Multicast Partitions: The A201 supports up to 20 multicast partitions, allowing broadcasts to be organized into different zones and managed according to specific requirements.

• 24MB Audio Storage: Built-in 24MB storage allows customized audio files to be stored for scheduled broadcasts, emergency notifications and other recurring announcements.

Fanvil A201 Ceiling Speaker SIP and Network Features

• SIP 2.0 Support: SIP 2.0 compatibility allows the A201 to integrate with compatible IP PBX, VoIP, broadcasting and communication systems.

• Two SIP Lines: Two SIP lines provide additional flexibility for IP-based communication and intercom deployments.

• PoE and PoE+ Support: Power over Ethernet allows both network connectivity and power to be supplied through a single Ethernet cable, helping simplify ceiling installation.

• 10/100Mbps Ethernet: The adaptive Ethernet interface provides network connectivity for IP communication, broadcasting and remote management.

• Network Management: The A201 supports web-based management and remote configuration, making it suitable for centralized deployment across multiple networked speakers.

Fanvil A201 Ceiling Speaker Intercom and Installation Features

• Built-in Omnidirectional Microphone: The integrated microphone supports two-way intercom, monitoring and self-testing functions.

• Short-Circuit Input and Output: One short-circuit input and one output provide integration options for compatible security, alarm and external control equipment.

• Ceiling-Mounted Design: The A201 is designed to be installed into a ceiling, providing a discreet audio solution while saving desk and wall space.

• Flexible Power Options: The speaker supports standard PoE, PoE+ and DC 12V–24V power, allowing installers to select a suitable power method based on the available infrastructure.

• Indoor Commercial Applications: Fanvil positions the A201 for indoor environments such as corporate offices, educational facilities and public information broadcasting areas.

Applications of Fanvil A201 Ceiling Speaker

• Office PA systems

• School announcements

• Hotel audio systems

• Retail stores

• Public-area broadcasting

• IP paging systems

• Background music

• Emergency announcements

• Commercial buildings

• Healthcare facilities

• Educational institutions

• SIP intercom systems

Pros and Cons of Fanvil A201 Ceiling Speaker

FAQs About Fanvil A201 Ceiling Speaker

What is the Fanvil A201 Ceiling Speaker used for?

The Fanvil A201 is designed for IP broadcasting, paging, background audio, emergency announcements and two-way intercom in indoor commercial and institutional environments.

What is the speaker power of the Fanvil A201?

The A201 provides 6W through standard PoE and up to 10W through PoE+ or DC power. The speaker has an 8Ω impedance.

How loud is the Fanvil A201?

The A201 has a maximum sound pressure level of 100dB, with a frequency response of 250Hz–20kHz.

Does the Fanvil A201 support SIP?

Yes. The A201 supports SIP 2.0 and provides two SIP lines for integration with compatible IP communication systems.

How many multicast zones does the Fanvil A201 support?

The A201 supports 20 multicast partitions, allowing network broadcasts to be distributed across different zones.

Does the Fanvil A201 have a microphone?

Yes. It has a built-in omnidirectional microphone that supports monitoring, self-testing and intercom functions.

Does the Fanvil A201 support PoE?

Yes. The A201 supports PoE and PoE+, allowing network connectivity and power to be delivered over Ethernet. It also supports DC 12V–24V/2A power.

Can the Fanvil A201 store audio files?

Yes. The A201 includes 24MB of internal audio storage for audio files used with scheduled broadcasts, emergency notifications and customized announcements.

Is the Fanvil A201 suitable for ceiling installation?

Yes. The A201 is specifically designed as a ceiling-mounted IP speaker, providing a discreet installation for offices, schools, hotels and other indoor environments.

Conclusion

The Fanvil A201 Ceiling Speaker is a commercial IP audio solution designed for indoor broadcasting, paging, background music and intercom applications. Its 10W speaker output, 100dB maximum SPL, SIP 2.0 support and 20 multicast partitions make it suitable for networked audio installations across offices, schools, hotels, retail spaces and other commercial environments.

The built-in microphone, 24MB audio storage, scheduled broadcasting functions and PoE/PoE+ connectivity further expand its functionality, while the ceiling-mounted design provides a clean and space-saving installation for professional IP audio systems.
