Description

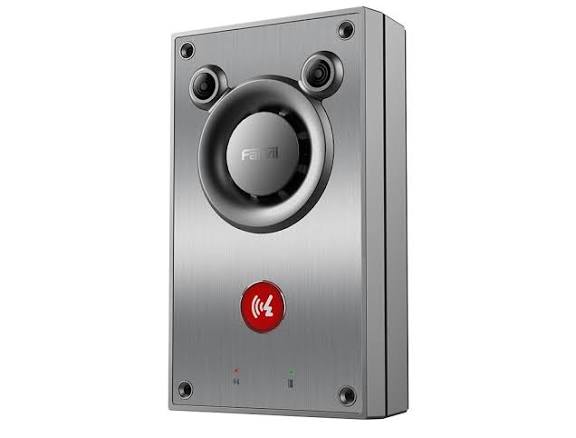

Overview of Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66

The Fanvil A12 Audio Intercom is a professional SIP intercom designed for security, access control, two-way communication and broadcasting applications. It features a 10W built-in speaker, dual microphones and full-duplex hands-free audio for clear communication.

The A12 supports 2 SIP lines, PoE+ connectivity and 10/100Mbps Ethernet, while providing Wiegand, RS485, USB, Micro SD and relay interfaces for integration with different security and communication systems.

Its IP66 and IK10 protection, stainless-steel panel and aluminum alloy housing make it suitable for demanding indoor and outdoor installations.

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Price in Kenya

The Fanvil A12 Audio Intercom price in Kenya is KSh 35,500.

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Specifications

Specifications are based primarily on Fanvil's A12 documentation.

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Audio Features

• 10W Built-In Speaker: Provides powerful audio for intercom calls and network announcements.

• Turbo Sound Chamber: Enhances the acoustic performance of the integrated speaker.

• Dual-Microphone Array: Improves voice pickup and communication clarity.

• 5m Voice Pickup: Captures speech from suitable distances of up to 5 meters.

• Full-Duplex Audio: Allows simultaneous speaking and listening during hands-free conversations.

• Audio Processing: AEC, ANR, AGC and AVC algorithms help improve speech clarity in challenging environments.

• HD Voice: Supports G.722 and Opus wideband codecs.

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Network and Access Control Features

• 2 SIP Lines: Supports multiple SIP accounts for IP-based communication.

• PoE+ Support: Uses IEEE 802.3at PoE+ for network connectivity and power.

• 10/100Mbps Ethernet: Provides wired network connectivity.

• Relay Outputs: Two built-in relay outputs support compatible access-control equipment.

• Short-Circuit Inputs: Two inputs allow connection to external sensors or triggering devices.

• Wiegand Interface: Supports integration with compatible access-control systems.

• RS485 Interface: Provides connectivity with compatible external devices.

• Dynamic Multicast: Supports network-based broadcasting and group communication.

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Protection and Installation Features

• IP66 Protection: Designed to resist dust and water ingress in demanding environments.

• IK10 Vandal Resistance: Provides strong protection against mechanical impact.

• Stainless-Steel Panel: Provides a durable and corrosion-resistant front panel.

• Aluminum Alloy Housing: Adds durability for professional installations.

• Wall-Mounted Installation: Suitable for surface-mounted deployments.

• Flush-Mounted Installation: Allows a more integrated installation where required.

• Wide Operating Temperature: Designed for operation from approximately -40°C to 70°C.

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Applications

• Security entrances

• Access control systems

• Commercial buildings

• Office buildings

• Schools and institutions

• Apartment complexes

• Parking facilities

• Industrial facilities

• Public buildings

• Outdoor communication points

• SIP intercom systems

• Network broadcasting systems

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Pros and Cons

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 FAQs

How many SIP lines does Fanvil A12 Audio Intercom support?

The Fanvil A12 supports 2 SIP lines for IP-based communication.

What speaker does Fanvil A12 Audio Intercom use?

The A12 features a built-in 10W speaker with a turbo sound chamber design.

Does Fanvil A12 Audio Intercom support PoE?

Yes. The A12 supports PoE+ through IEEE 802.3at Class 4.

Does Fanvil A12 Audio Intercom have access-control interfaces?

Yes. It provides Wiegand, RS485, short-circuit inputs and relay outputs for integration with compatible access-control equipment.

Is Fanvil A12 Audio Intercom suitable for outdoor use?

Yes. Its IP66 and IK10 ratings make it suitable for demanding outdoor and exposed installations when properly installed.

What is the voice pickup range of Fanvil A12 Audio Intercom?

The dual-microphone system supports voice pickup of up to 5 meters under suitable environmental conditions.

Can Fanvil A12 Audio Intercom be flush mounted?

Yes. The A12 supports both wall-mounted and flush-mounted installation.

Does Fanvil A12 Audio Intercom support broadcasting?

Yes. The A12 supports MP3/WAV broadcasting and dynamic multicast, making it suitable for network-based announcement systems.

Fanvil A12 Audio Intercom – 2 SIP Lines, 10W Speaker, IP66 Conclusion

The Fanvil A12 Audio Intercom combines 2 SIP lines, a 10W speaker, dual microphones, PoE+, access-control interfaces, IP66 protection and IK10 vandal resistance in a durable professional intercom. At KSh 35,500, it is suitable for security entrances, commercial buildings, access-control systems, institutions and network broadcasting applications.
