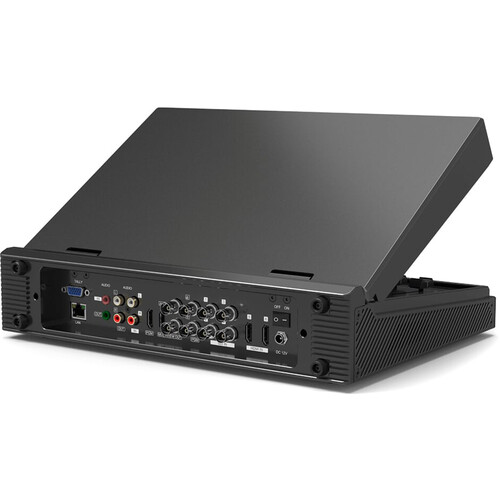

The Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher with 13.3" Display from AVMATRIX supports a mix of different resolutions and frame rates up to 1080p60 over two HDMI and four SDI auto-detecting inputs. The switcher provides a flexible solution for sports, events, education, and various other live production applications. All the signals can be scaled to 1080p60 or 1080i60 on PGM output, and you can switch between the sources and apply audio mixing and transition effects.
Featuring a USB-C 3.0 output, the switcher can also be connected to your Windows/Mac/Linux computer as if it was a webcam. You'll be able to stream connected video and audio signals to UVC/UAC compatible platforms such as OBS Studio, Skype, YouTube Live, Facebook Live, Zoom, and Teams.

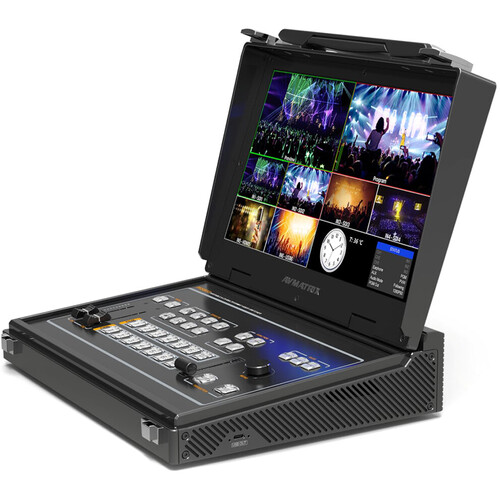

In an all-in-one portable design, the switcher is housed in a robust metal case and has a 13.3" Full HD IPS display and familiar switching controls, including a T-bar. The display allows for multiview monitoring of six sources along with PVW and PGM with an audio meter. A clock and a menu list are also displayed in the bottom right corner.
Key Features
- Multiview output fixed at 1080p60; PGM scaled output selectable via a knob
- Two HDMI and four SDI inputs
- One HDMI and two SDI PGM outputs
- One HDMI and one SDI multiview outputs
- SDI AUX output can be selected as PGM or PVW
- UVC livestreaming via USB-C 3.0 connection
- One 3.5mm stereo audio input; one RCA (L/R) input
- One 3.5mm stereo audio output; one RCA (L/R) output
- RJ45 LAN interface (for updates; synchronize local time)
- GPIO tally
- T-Bar/Auto/Cut transitions
- Mix/Fade/Wipe transition effects
- PiP mode with adjustable size and position
- FTB (fade to black) emergency button
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Specifications Table
| Specification |
Details |
| Video Inputs |
4×SDI, 2×HDMI |
| Max Resolution |
Up to 1080p60 |
| Display |
13.3-inch FHD IPS |
| Streaming Output |
USB-C (UVC/UAC) |
| Program Outputs |
2×SDI, 1×HDMI |
| Multiview Outputs |
1×SDI, 1×HDMI |
| Audio I/O |
3.5mm, RCA (L/R) |
| Control |
T-Bar, buttons |
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Price in Kenya
| Product |
Price (KES) (approx.) |
| AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher |
130,000 – 180,000 |
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Performance
- Reliable switching between multiple video sources
- Smooth real-time transitions during live production
- Stable 1080p streaming via USB-C output
- Efficient for events, churches, and live broadcasts
- Handles mixed input formats without external converters
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Image Quality
- Supports Full HD 1080p60 video workflows
- Maintains consistent video output quality
- Scales different resolutions to uniform output
- Clean switching with minimal latency
- Suitable for professional live streaming visuals
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Build Quality and Design
- All-in-one portable metal chassis design
- Integrated display reduces need for external monitors
- Compact layout with professional control interface
- Durable build for field and studio use
- Designed for mobile production setups
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Connectivity and Compatibility
- Works with OBS, Zoom, YouTube Live, Facebook Live
- USB-C acts as webcam output (no drivers required)
- Compatible with Windows, macOS, and Linux
- Supports SDI and HDMI professional workflows
- GPIO support for tally systems
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher User Interface and Controls
- Physical buttons for direct switching
- T-Bar for manual transition control
- On-screen multiview monitoring
- Menu-based configuration via display
- Easy operation for live production teams
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Durability and Weather Sealing
- Solid metal construction for durability
- Designed for frequent transport and setup
- Reliable connectors protected within chassis
- Suitable for indoor and controlled outdoor use
- Not weather-sealed or waterproof
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Pros and Cons
| Pros |
Cons |
| All-in-one switcher with built-in display |
Limited to Full HD (no 4K support) |
| Supports both SDI and HDMI inputs |
Higher price for beginners |
| USB-C streaming without capture card |
Slight learning curve for new users |
| Professional transition controls (T-Bar) |
Bulky compared to mini switchers |
| Great for live events and streaming |
No internal recording on some models |
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher FAQs
1. Can it stream directly to YouTube or OBS?
Yes, via USB-C it works as a webcam for streaming platforms.
2. Does it support 4K video?
No, it supports up to 1080p60.
3. How many inputs does it support?
Six inputs (4 SDI and 2 HDMI).
4. Does it have a built-in screen?
Yes, a 13.3-inch Full HD display for multiview monitoring.
5. Is it suitable for live events?
Yes, it is ideal for live streaming, conferences, and productions.
AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher Conclusion
The AVMATRIX Portable 6-Ch SDI/HDMI Multi-Format Streaming Switcher is a powerful and versatile tool for professional live production. With its multi-input support, built-in display, and direct USB streaming capability, it provides a complete solution for content creators, event organizers, and broadcasters who need reliable and efficient switching in a portable format.
